OKYSTAR time relay switch 5V/12V/24V delay time relay 12V module
Description
1. Brand-new upgrade, the module function is increased to 32 kinds
to meet more application needs.
2. The power supply anti-reverse connection function will not
damage the module due to wrong connection of the power supply.
3. Timing accuracy to 0.01 second timing. 0.1 second (minimum) ~
999 minutes (maximum) optional
4. Low power consumption and power saving settings, you can turn
off the display area.
Product parameters:
Input voltage: 5V version: DC5V power supply; 12V version: DC12V
power supply; 24V version: DC24V power supply
Output load: within DC 30V, maximum 10A. Within 250V AC, the
maximum is 5A.
Trigger signal: 5V version (high level: 5V); 12V version (high
level: 12V), 24V version (high level: 5V) All low levels are 0V.
Quiescent current: 20mA
Working current: 60mA
Working temperature: -25℃-85℃
Power-off memory: Yes
Product size: length 65 width 34.3 height 17.5 (MM)
Product Features
| Product | Weight | 25g |
| Application | delay time relay 12V module |
| Type | relay module |
| Place of Origin | Guangdong, China |
| warranty | 1 year |

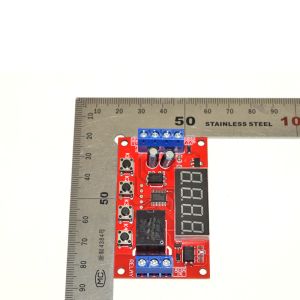

Product Picture
