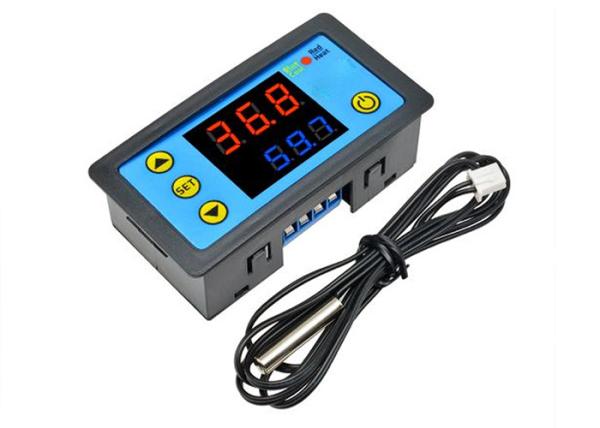

DC12V /24V AC110-220V Digital thermostat controller W3231 with
infrared remote control for Arduino
Description:
- High-precision temperature control probe with outstanding
temperature control performance and accuracy
- Cost-effective, wide temperature control range, simple setting
- It can be directly installed and used or embedded on panels such as
industrial control equipment, which is convenient and practical
- Widely used in case temperature control, poultry hatching, air
conditioning system, temperature protection and other occasions
- It can be controlled by remote control, the farthest remote control
distance can reach 15 meters(the quality of the infrared receiver
itself, whether there are obstacles in the middle and other factors
will affect the remote control distance)
- Remote control settings:
- C/F: Fahrenheit/Celsius switch
- ENT: Enter key (short press "ENT" to enter code setting mode, short
press "SET" after selection to enter code setting, press up and
down keys to set parameters, press "ENT" key after setting or no
operation within 3 seconds to save the setting.
- Set: Short press "SET", the small digital tube flashes, press "+"
or "-" to set the target temperature, press the "SET" key or no
operation within 3 seconds to save the setting.
Specification:
Temperature control accuracy | 0.1℃/0.1℉ |
Display color | Red + Blue |
The longest distance of remote control | 15 meters |
Product size | 79.2mm×41.9mm×26.3mm |
Hole size | 72.1mm×39.2mm |
Application | For stem education |
