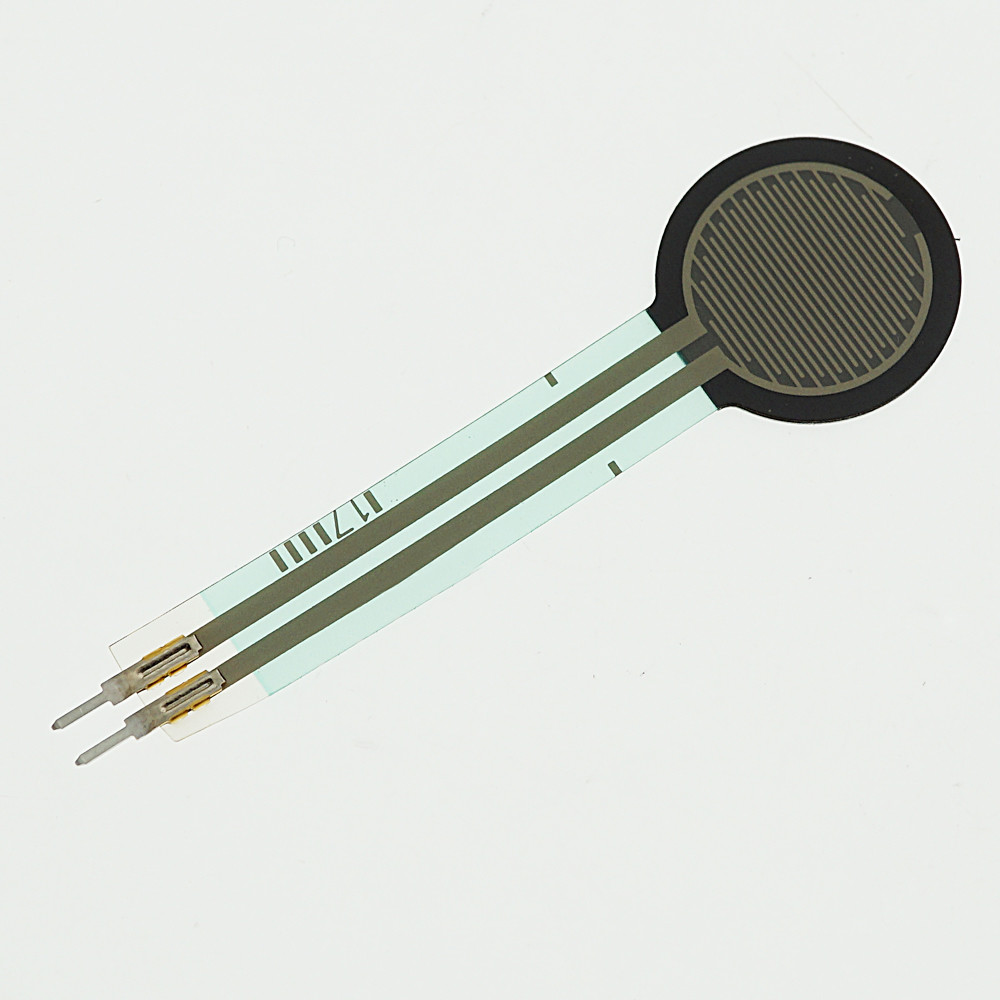

Fsr402 0.5Inch Thinfilm Forcesensitive Resistor Pressure Sensor
Description:
The model 402 FSR is a single-zone force sensing resistor optimized
for use in human touch control of electronic devices such as
automotive electronics, medical systems, and in industrial and
robotics applications. It has a 0.5" diameter active area to
converter the pressure into the resistance then output. It is fit
for 0-10kg pressure sensing area like small smart robot,mechanical
gripper arm and so on.
Feature:
Sensing area: 0.5 circle
Output signal: Passive variable resistance
Force sensitive range: 100g to 10 kg
Lifetime: > 10 million actuations
Operating temperature -40 ° C to 85 ° C
Dimensions:
Overall length: 2.375"
Overall width: 0.75"
Sensing diameter: 0.5"
Package:
Different package at optional:
1. Retailing Package:Anti-static bag
2. Bulking Packing:Plastic Bag Package
3. Retailing Box package design according to your requirement(
Order > 3000PCS)
Competitive Advantage:
1. Convenient & Friendly Customer Service
2. Low Prices Direct From Factory Suppliers
3. Fast Delivery Around the World.
4. High Quality With Global Standards.
5. 1 Year Factory Warranty
6. Safe Shipping Way and Payment
FAQ:
1. What is the delivery time?
Normally, 1-5 workdays after payment; Special requirement orders,
delivery time is negotiable.
2.If the products can’t work after receiving it,what should I do?
We will replace new items for you at once and then we make the
judgement for the issue.
3.If the products don’t meet my demand after I received it,can I
return it?
Yes,no problem.You can return back to us, we will refund your full
payment.
4.what is the warranty?
1-3 months to replace new items for free, 1-2 years repairing free
according to different products.
5.Do you accept OEM design?
Yes,we do.We can design according to your requirement.
6.Are you a manufacturer?
Yes,we are.
