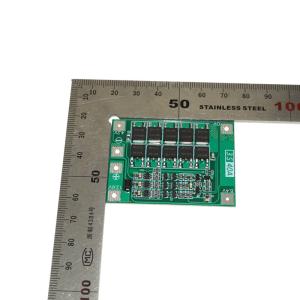

18650 Battery Charger Protection Board Charging Module Lipo Charger
Module Enhance version
Description
- Discharge: continuous discharge current 30A (MAX), instantaneous
discharge current 70A;
- Charging: charging voltage 16.8V, charging current 30A (MAX);
- Overcharge protection: overcharge detection voltage 4.28V ± 0.05,
overcharge protection delay 0.1S, overcharge release voltage: 4.08V
± 0.1;
- Cell balance: cell balance detection voltage 4.2V ± 0.025, cell
balance release voltage 4.2V ± 0.05, cell balance current 60mA ± 5;
- Overdischarge protection: overdischarge detection voltage 2.55V ±
0.08, overdischarge detection delay 0.1S, overdischarge release
voltage 3.0V ± 0.1;
- Overcurrent protection: Overcurrent detection voltage 150mV,
overcurrent detection delay 9mS, overcurrent protection current 75A
± 5, overcurrent protection release condition (disconnect the
load);
- Short-circuit protection: short-circuit protection condition
(short-circuit of external load), short-circuit detection delay of
250uS, short-circuit protection release condition (open negative
open);
- Temperature protection: None;
- Internal resistance: The internal resistance of the main circuit is
≤15mΩ;
- Self-consumption: working current ≤ 30uA, sleep current (when the
battery is over discharged) ≤ 10uA; 11) Working temperature:
temperature range -30 ℃ / + 80 ℃.
Product Features
| Product | Description | 18650 Charger Protection Board |
| Weight | 35g |
| Product size | 40*55*5mm |
| Place of Origin | Guangdong, China |
