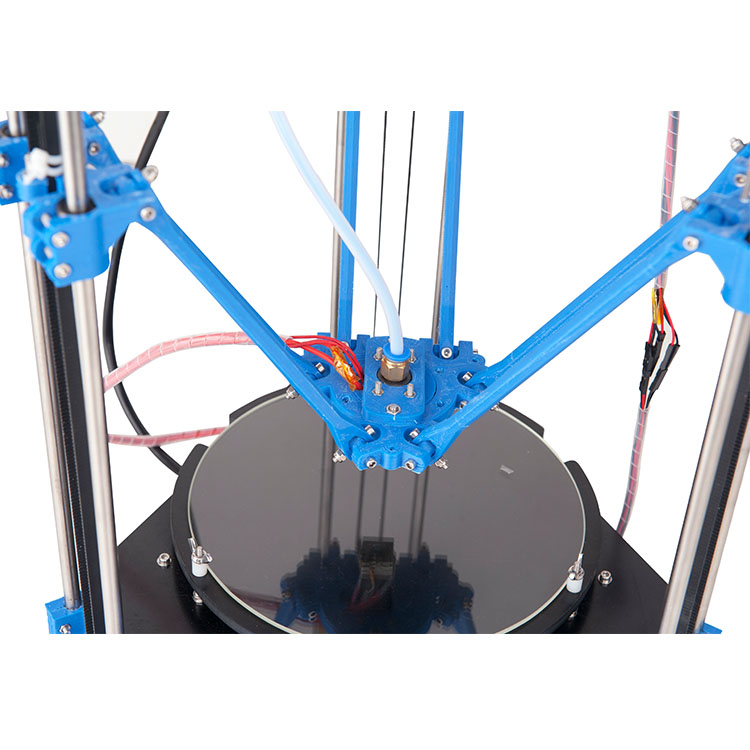

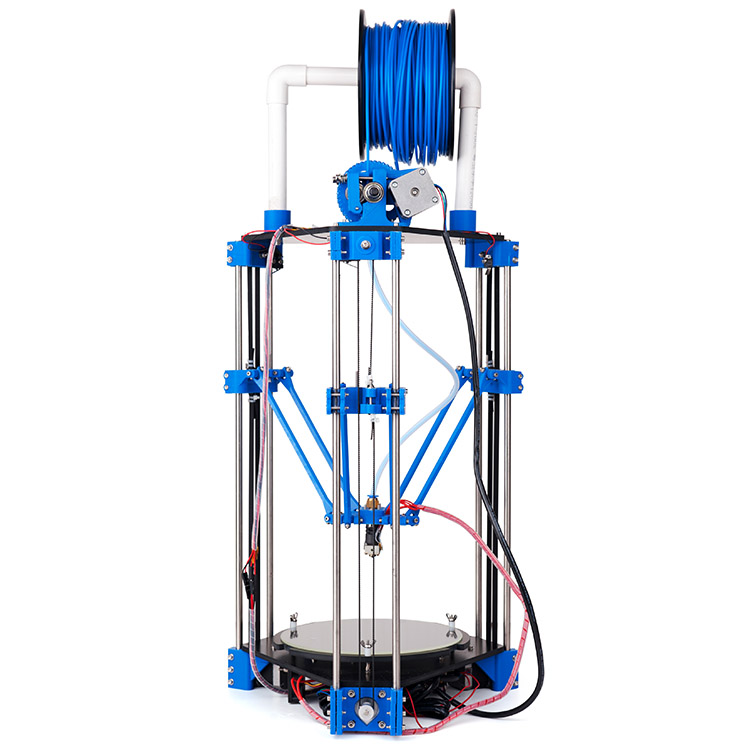

DIY Educational kit,3D Printer DIY ROSTOCK Mini Pro Replicator
Machine PLA/ABS Fully Assembled Kit of 3D Printer kit
Performance Parameters:
Power supply of machine: 220-240VAC/4A (DC12V/ 29A), connecting
wire with ATX port
Operating system: Windows/Mac/Linux
Slicing software: Cura/Repetier
Control software: Repetier-Host
Data format: all 3D files converted into STL file
Printing material: 1.75mm/3mm PLA /ABS (ABS used only when hot bed
is equipped)
Equipment interface: high-speed USB interface or SD card
Extrusion system: Bowden feed
Mechanism Parameters:
Print technology: Fused Deposition Modeling
Physical structure: Delta
Machine size: 280mm*340mm*700mm (L/W/H)
Packing size: 510*410*260mm (L/W/H)
External frame: AISI304 stainless steel optical axis with Bakelite
of 6mm thickness
Print Performances:
hot bed: supported but not included in package.
Print platform: tempered glass with 198mm diameter and 3mm
thickness
Extruder: peek J-head hotend extuder
Nozzle size: 0.3mm,0.35mm,0.4mm & 0.5mm avaiable
Nozzle Qty.: single
Nozzle temperature: 180℃-240℃
Print range: cylindrical space with 150mm diameter &180mm
height
Printing thickness: 0.05mm -0.4mm
Accuracy of layer thickness: 0.05mm
Location accuracy: 0.1mm
Movement mode: printing platform fixed; X, Y and Z axes all subject
to parallel movement
Package list:
| NO. | Name | Specification | Qty |
| Mechanical Parts |
| 1 | Rod | D8*L500mm | 6 |
| 2 | Hobbed Bolt | M8x55 | 1 |
| 3 | Deep groove ball bearing | 608 ball bearing | 3 |
| 4 | Deep groove ball bearing | 624 ball bearing | 3 |
| 5 | Line bearing | LM8UU | 6 |
| 6 | Top Plate | T=6mm triangle Acrylic | 1 |
| 7 | Lower Plate | T=6mm triangle Acrylic | 1 |
| 8 | Build Holder | T=6mm roundness Acrylic | 1 |
| 9 | Glass build bed | T=3mm roundness | 1 |
| 10 | Timing belt | L=110cm | 3 |
| 11 | Pulley | | 3 |
| 12 | Washer | M3 | 140 |
| 13 | Washer | M4 | 15 |
| 14 | Washer | M8 | 10 |
| 15 | Hex nut | M3 | 100 |
| 16 | Hex nut | M4 | 10 |
| 17 | Hex nut | M6 | 1 |
| 18 | Torque nut | M3 | 18 |
| 19 | Torque nut | M4 | 6 |
| 20 | Torque nut | M8 | 1 |
| 21 | Wing Nut | M3 | 3 |
| 22 | Hex socket set | M3x6 | 8 |
| 23 | Hex socket head | M3x10 | 40 |
| 24 | Hex socket head | M3x12 | 10 |
| 25 | Hex socket head | M3x16 | 50 |
| 26 | Hex socket head | M3x20 | 30 |
| 27 | Hex socket head | M3x25 | 8 |
| 28 | Hex socket head | M3x30 | 10 |
| 29 | Hex socket head | M3x35 | 10 |
| 30 | Hex socket head | M3x40 | 5 |
| 31 | Hex socket head | M4x20 | 8 |
| 32 | Hex socket head | M4x30 | 10 |
| 33 | Hex socket head | M4x50 | 2 |
| 34 | Spring | free length 30mm (hotbed) | 3 |
| 35 | Spring | free length 15mm (extruder) | 2 |
| 36 | Pole | | 7 |
| Electronics Parts |
| 37 | Cooler fan | 12V 40x40 | 1 |
| 38 | Endstop | 2 pin,L=100mm | 3 |
| 39 | USB cable | 1.5m | 1 |
| 40 | Stepper motor nema17 | 2.5A | 4 |
| 41 | Power supply with cable | Input AC 220V/2.4A(110V/4.8A),Output DC 12V/29A | 1 |
| 42 | Binder Clips | W=19mm | 3 |
| 43 | ZIP | W=2-3mm L=100-150mm | 15 |
| 44 | Memory card | 4GB | 1 |
| 45 | Heatsink & sticker | 4pcs heatsink & 2pcs sticker | 1 |
| 46 | Winding pipe | 3M | 1 |
| 47 | Scewdriver set | | 1 |
| 48 | File | | 1 |
| 49 | PVC-U TUBE to hold filament | D=20mm L=200mm | 3 |
| 50 | PVC-U TUBE to hold filament | 90°ELBOW | 2 |
| 51 | ABS/PLA filament | | 1 |
| 52 | PTFE tubing | L=400mm | 1 |
| 53 | Thimble to dredge HotEnd | D=2.9mm,L=20cm | 1 |
| 54 | Stepper driver | A4988 | 4 |
| 55 | Main board | Sanguinololu | 1 |
| 56 | LCD controller | LCD2004 | 1 |
| 57 | Hot End | PEEK J-head hotend | 1 |
| Plastic Parts |
| 58 | Motor end | | 3 |
| 59 | Idler end | | 3 |
| 60 | Carriage | | 3 |
| 61 | Platform | | 1 |
| 62 | Jaws | | 6 |
| 63 | Joint | | 12 |
| 64 | Belt Slider | | 3 |
| 65 | Belt guides | | 6 |
| 66 | Filament holder | | 2 |
| 67 | Tube Holder | | 1 |
| 68 | Hotend Mount 01 | | 1 |
| 69 | Hotend Mount 02 | | 1 |
| 70 | LCD Knob | | 1 |
| 71 | LCD Holder | | 2 |
| 72 | Wade_body | Extruder parts to fix motor | 1 |
| 73 | Wade idler | Extruder parts | 1 |
| 74 | Big gear | Extruder parts | 1 |
| 75 | Small gear | Extruder parts | 1 |
