Arduino Wireless Transceiver Module Transmission PTR8000 433 / 486 / 915MHz

Description:
Tri-band transceiver unity, the operating frequency for the international general ISM band the 433/868/915MHz GMSK modulation, anti-interference ability, particularly suitable for industrial control occasions DSS + PLL frequency synthesizer technology, high sensitivity and excellent frequency stability achieved -100dBm low operating voltage (2.7V), low power consumption, standby only 1uA maximum transmit power of +10 dBm to meet the requirements of low-power devices with multiple channels (up to 170), especially to meet the needs of multi-channel workthe special occasions of operating up to 76.8Kbps
Minimum of external components (only 10), and the basic need to debug. As a result of the low transmit power, receiver sensitivity design, use no need to apply for a permit, the use of the open land at distances up to 1000 meters ** related to the specific use of the environment and the device parameters. Fully compatible (PTR8000 +) module

Electrical characteristics:
NRF905 work bands: 433/868/915MHz
Channel number: 170
Function: transmit/receive
Frequency stabilization method: PLL
Modulation mode: FSK/GMSK
Maximum output power: +10 dBm
Sensitivity:-100dBm
Maximum work rate: 76.8Kbit/s
Operating voltage :2.7 - 3.3V

Package list:
1 X NRF905 Wireless Transceiver Module

2. Low Prices Direct From Factory Suppliers

3. Fast Delivery Around The Globe.
4. High Quality With Global Standards.
5. 3 year factory warranty
6. Safe shipping way and payment

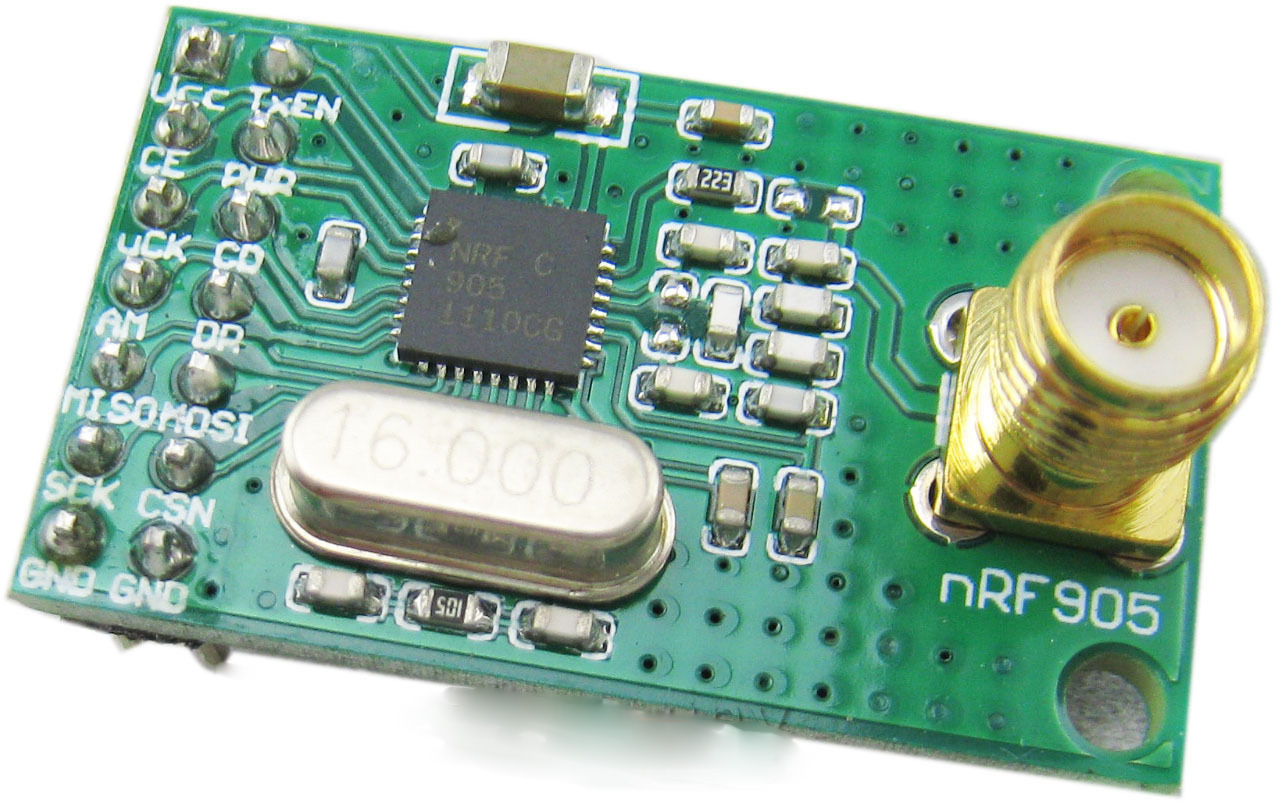

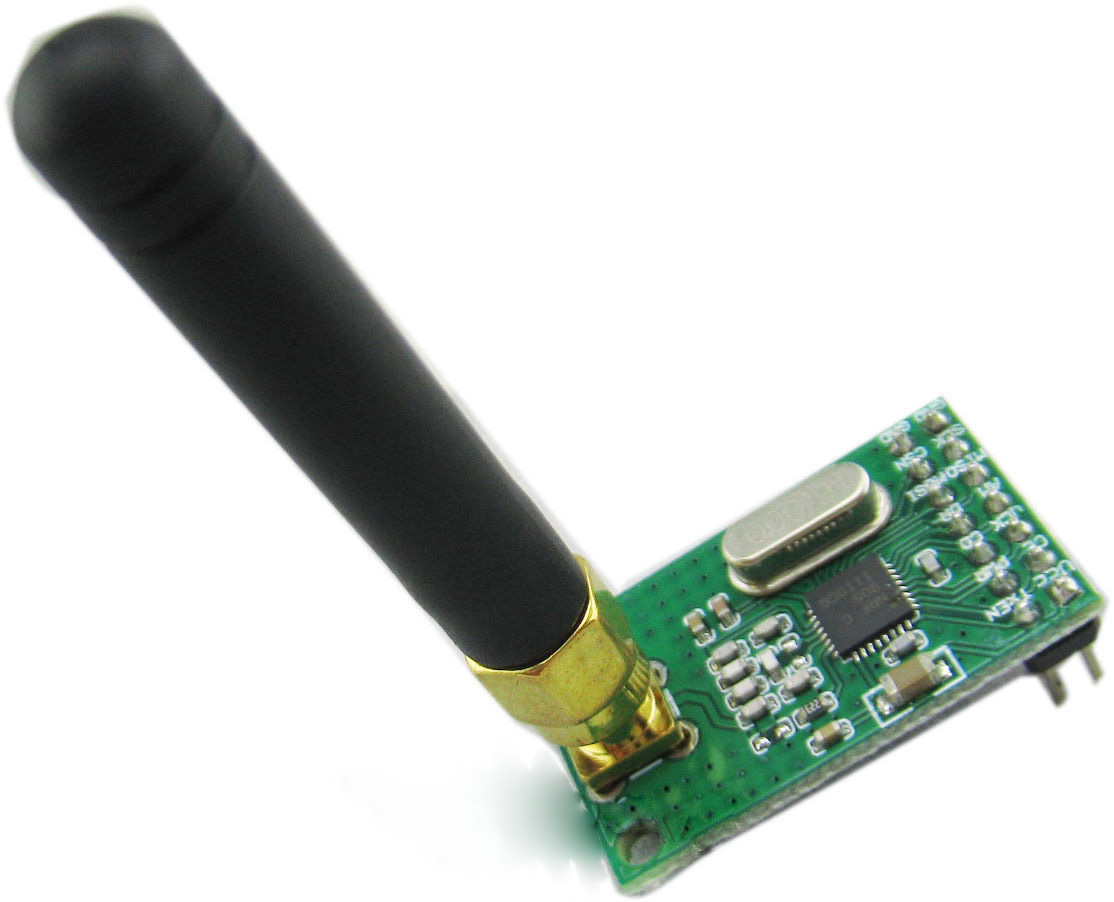

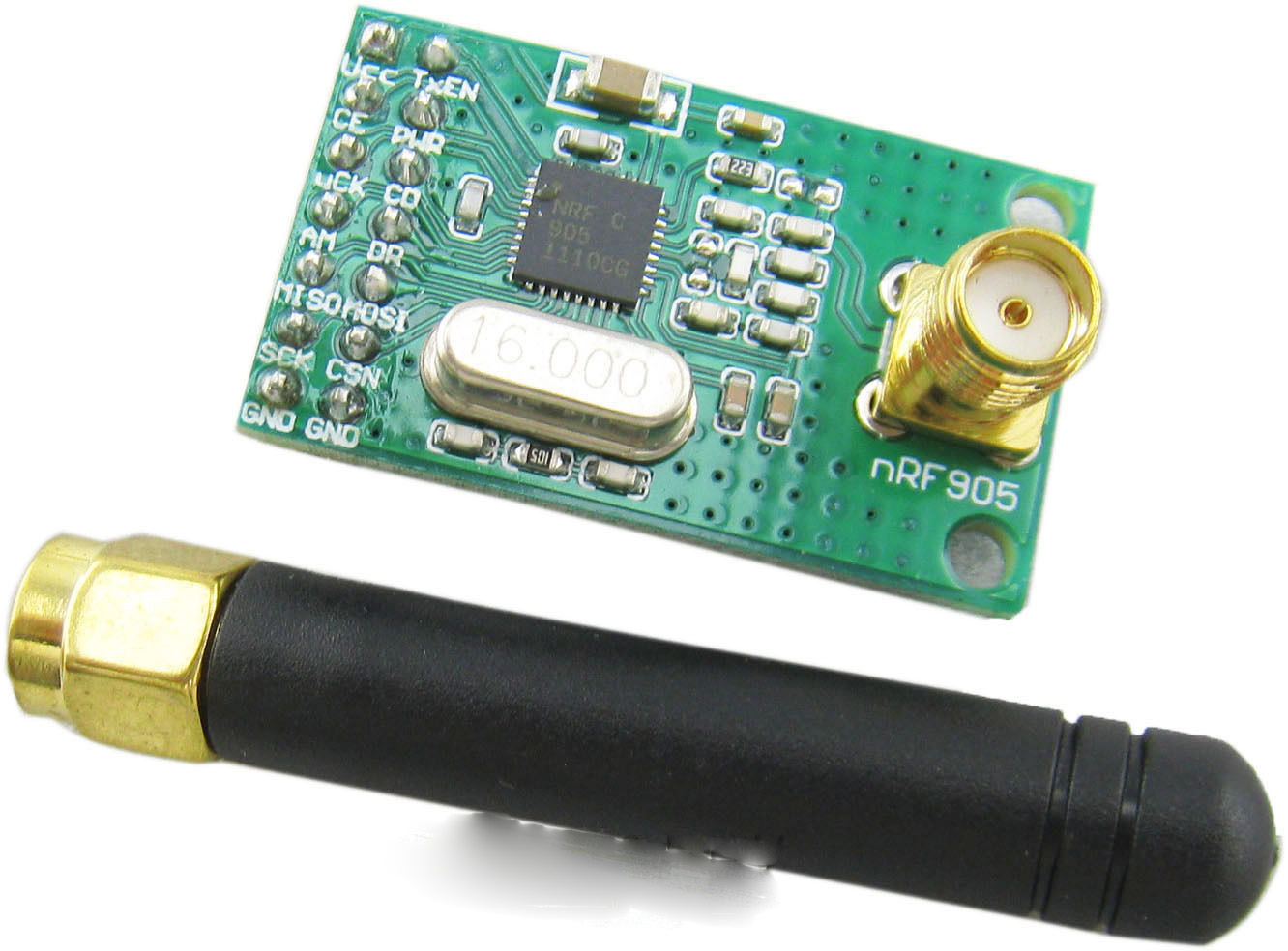

Photos:
