Four DC Motor Driver Module for Arduino , SMT L293D Chip 4WD car
L293D modules
Specifications:
The drive module can directly drive four DC motors, drive the car
chassis is 4WD 4 choice. Driving battery big up to 1A generally
smart car motor current 100-300MA only four are sufficient to meet
the control requirements. While leaving Road stepper motor
interface can drive Road five line four-phase stepper motor or
Road, two-phase four-wire stepper motor, very suitable for precise
control requirements.
Leaving the corresponding interface can be directly connected to
the steering gear, infrared obstacle avoidance and other
peripherals. While leaving charger interface, bouncing switch, hand
into the charger to charge rechargeable batteries. Very convenient!
The four DC motor driver module, using ST's original new L293D
chip, SMT technology, high stability, high quality aluminum
electrolytic capacitors, the circuit stability. Can directly drive
4-way 3-16V DC motor, and provides a 5V output interface (input as
little as 6V), you can give 5V microcontroller circuit system power
supply (low ripple factor), support 3.3V MCU ARM control, you can
easily control DC motor speed and direction can be controlled
two-phase stepper motor, 5-wire 4-phase stepper motor. Is a 4 car,
smart car essential tool.
4 DC motor driver module / 4WD car / L293D module for Arduino Smart
Car Robot
Features:
| Driver chips: | L293D dual H-bridge DC motor driver chip |
| Terminal of driven part supply range Vs: | +5 V ~ +16 V |
| Take power from the plate Supply area Vs | +6 V ~ +16 V |
| The peak current of driven part Io: | 1A |
| Logical part of the operating current range | 0 ~ 36mA |
| Signal input control voltage range | IN1/2/3/4/5/6/7/8 |
| Signal input enable voltage range | EN1 EN2 EN3 EN4 |
| Maximum power consumption | 20W (temperature T = 75°C) |
| Board Size | Size: 38mm * 91mm |
Competitive Advantage:
1. Convenient & Friendly Customer Service
2. Low Prices Direct From Factory Suppliers
3. Fast Delivery Around the World.
4. High Quality With Global Standards.
5. 1 Year Factory Warranty
6. Safe Shipping Way and Payment

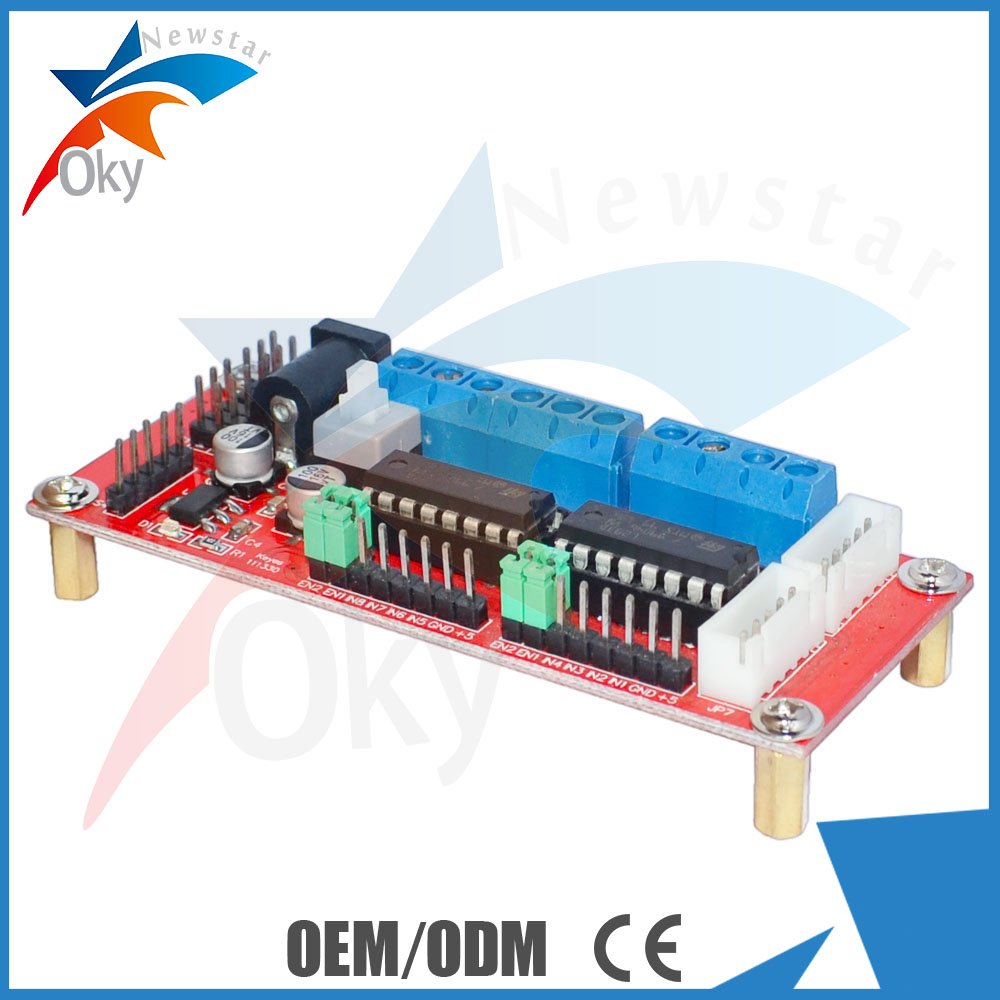

Photos:
