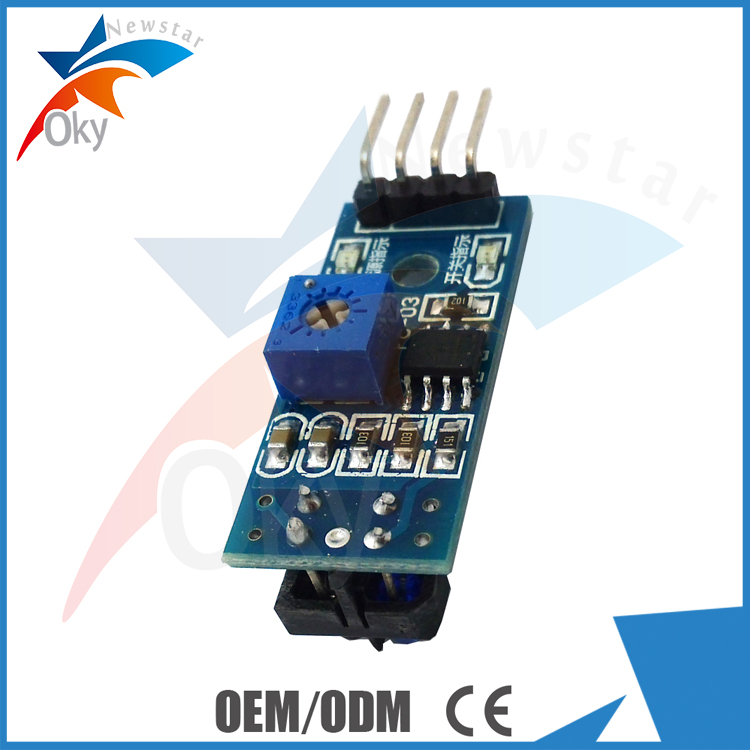

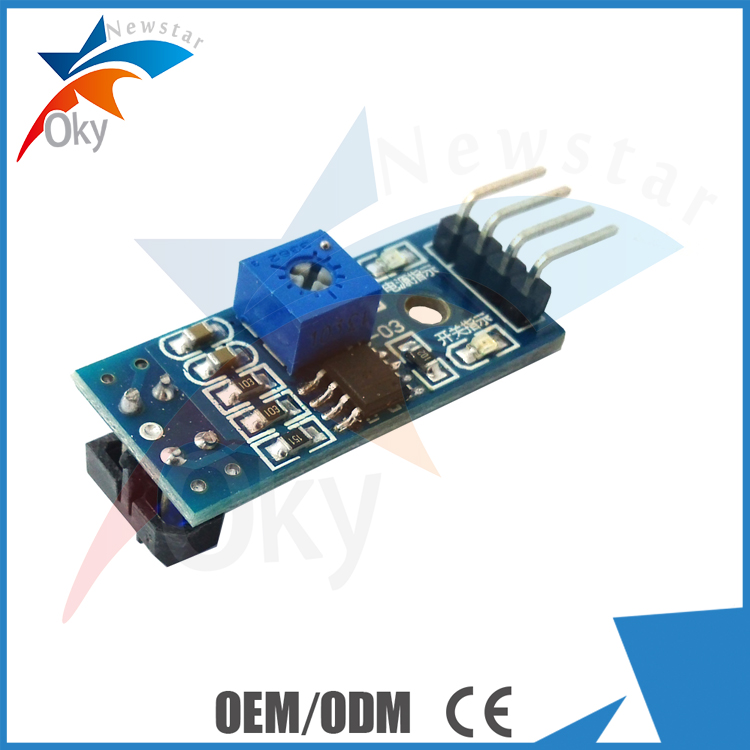

Infrared Reflective Sensor Tracking Module for Arduino with 3.3V - 5V

Description:

§ Product Name Track Sensor Module

§ Output Channel 1
§ Working Voltage 3.3-5V
§ Detect Distance 1-8mm
§ Focal Distance 2.5mm
§ PCB Size 35 x 15mm (L*W)
§ Hole Size 3mm/ 0.12"
§ Material Electric Part
§ Net Weight 3g
§ Package Content 1 x Track Sensor Module

Application:

electricity meter pulse data sampling, fax paper shredder detection, obstacle detection, black and white line detection.
Designed with reflected infrared sensor, indicator light.
Built in a potentiometer for sensitivity control.

On-board LM393 voltage comparator chip and infrared sensing probe TCRT5000L
Support 5 V / 3.3 V voltage input
On-board signal output instructions, output is high effective signal at the same time, the indicator lamp light output signal can be directly and single-chip microcomputer IO connection
Signal detection sensitivity can adjust
Reserve all the way more circuits (P3 voltage drawn)
PCB board size: 35 (mm) x15 (mm)

Package:

1x Infrared reflective Photoelectric Switch IR Barrier Line Track sensor TCRT5000L

Item 2:

1x 4Pin Dupont cable 1p-1p
