Mega2560 ATmega2560-16AU custom arduino board / ATmega328P UNO R3 Board

Mega2560 ATmega2560-16AU custom arduino board / ATmega328P UNO R3 Board

Specifications:

Controller	Atmega8u2
Input Voltage (recommended)	7-12V
Digital IO pins	54 (of which 15 provide PWM output)
Analog input pins	16
DC Current per I/O Pin	40 mA
SRAM	8 KB
Clock Speed	16 MHz
Operating voltage	5V
Input Voltage (limits)	6-20V
PWM channel	15
Flash Memory	256 KB of which 8 KB used by bootloader
Pack Size	10cm10cm5cm
Weight(board)	38g
Cable	25g
DC Current for 3.3V Pin	50 mA

Mega 2560 Power:

The Mega 2560 is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller;Â simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.

Additional features coming with the R3 version are:

ATmega16U2 instead 8U2 as USB-to-Serial converter.
1.0 pinout: added SDA and SCL pins for TWI communication placed near to the AREF pin and two other new pins placed near to the RESET pin, the IOREF that allow the shields to adapt to the voltage provided from the board and the second one is a not connected pin, that is reserved for future purposes.
stronger RESET circuit.

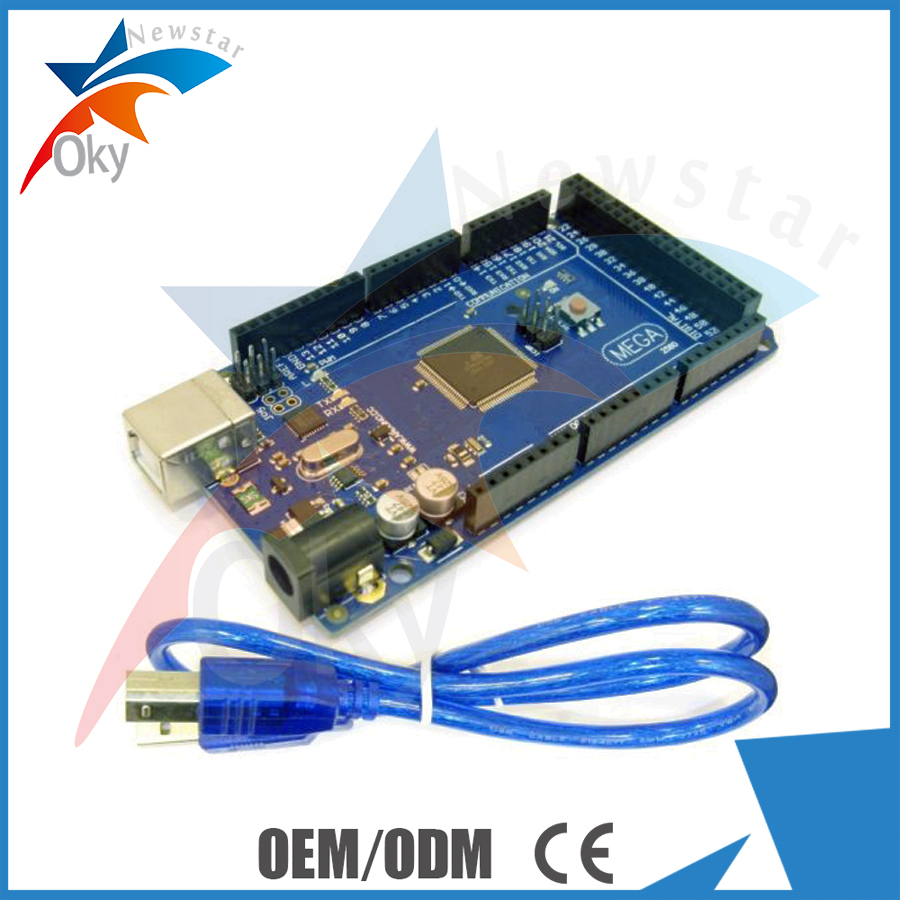

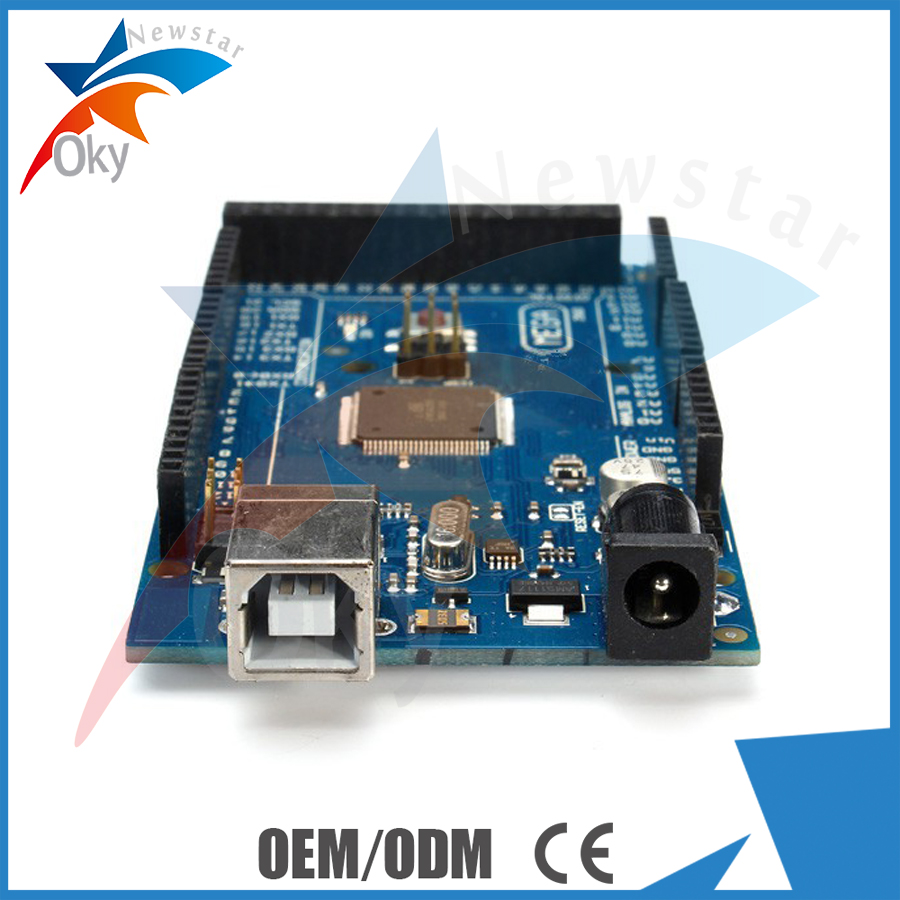

The Product Image:
