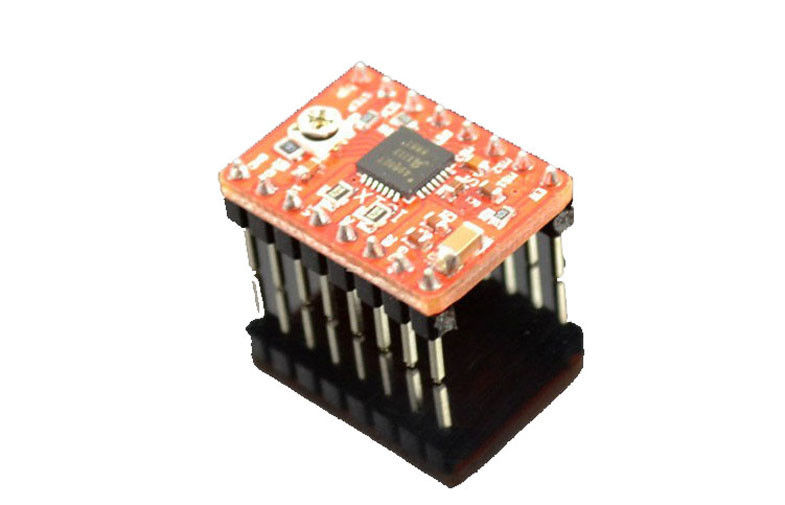

A4988 Stepper Motor Driver For 3D Printer Reprap Prusa Mendel

Quick Detail:

New 3D printer A4988 Stepper Motor Driver
1.Samples offer
2.quick delivery
3.good quality

Reprap Stepper Motor Driver Stepstick A4988 for 3D Printer Reprap Prusa Mendel 3D Printer Kits

Description:

- Simple step and direction control interface
- Five different step resolutions: full-step, half-step, quarter-step, eighth-step, and sixteenth-step
- Adjustable current control lets you set the maximum current output with a potentiometer, which lets you use voltages above your stepper motor’s rated voltage to achieve higher step rates
- Intelligent chopping control that automatically selects the correct current decay mode (fast decay or slow decay)
- Over-temperature thermal shutdown, under-voltage lockout, and crossover-current protection
- Short-to-ground and shorted-load protection

Specifications:

- Low RDS (On) Output
- Automatic current decay mode detection / selection
- Mix with slow current decay modes
- Synchronous rectification for low power dissipation
- Internal UVLO
- Crossover-current protection
- 3.3 and 5 V compatible logic supply
- Thermal shutdown circuitry
- Ground fault protection
- Load short-circuit protection
- Five selectable step modes: full, 1/2, 1/4, 1/8 and 1/16
